Hebei Yawo Machinery Manufacturing Co., Ltd Mainly Produces the CW Series Conventional Horizontal Lathe, CAK Series CNC Horizontal Lathe, Meanwhile We Can Customize All Kinds Of Special Machine Tools According To Customer’S Requirements.
cw61200
Hot Products

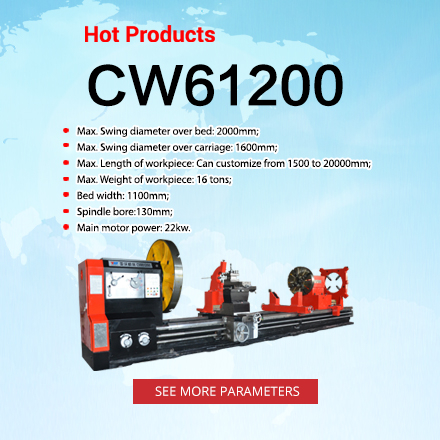

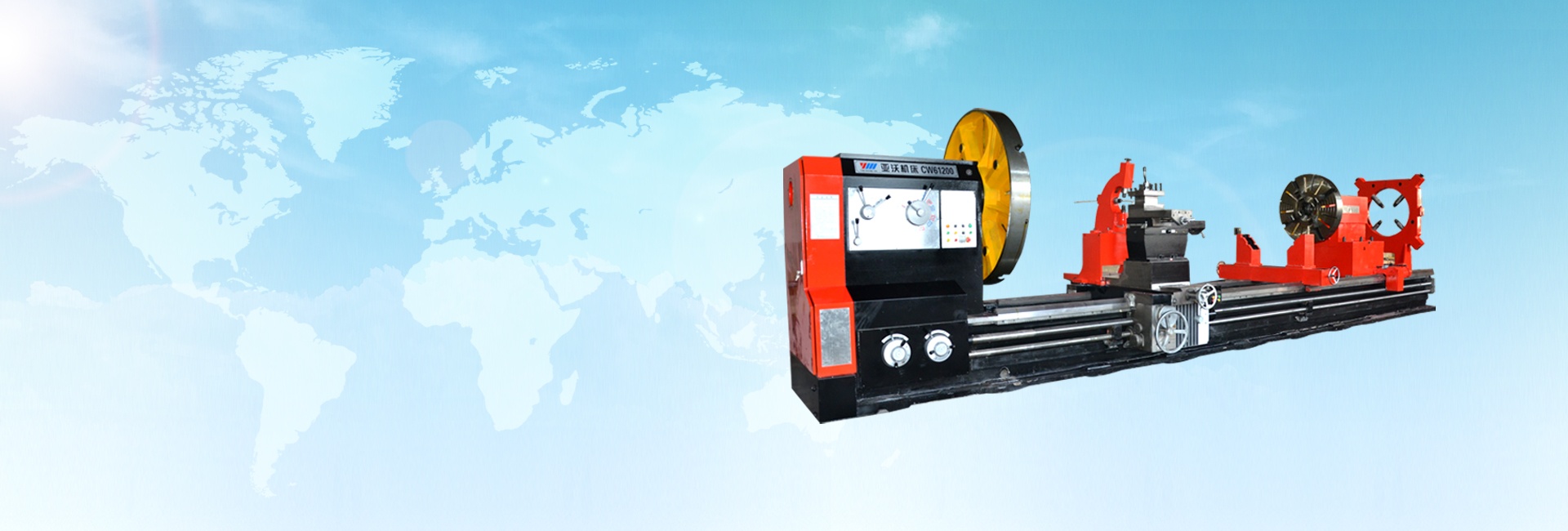

CW61200
Max. Swing diameter over bed: 2000mm;
Max. Swing diameter over carriage: 1600mm;
Max. Length of workpiece: Can customize from 1500 to 20000mm;
Max. Weight of workpiece: 16 tons;
Bed width: 1100mm;
Spindle bore:130mm;
Main motor power: 22kw.

SEE MORE PARAMETERS

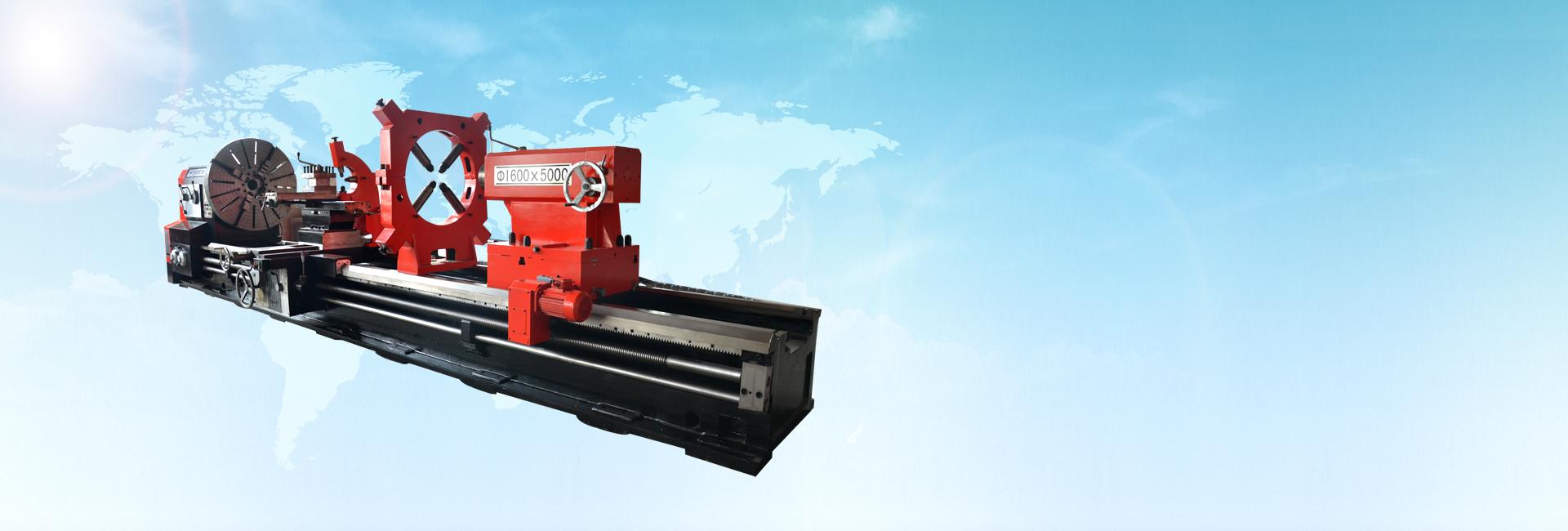

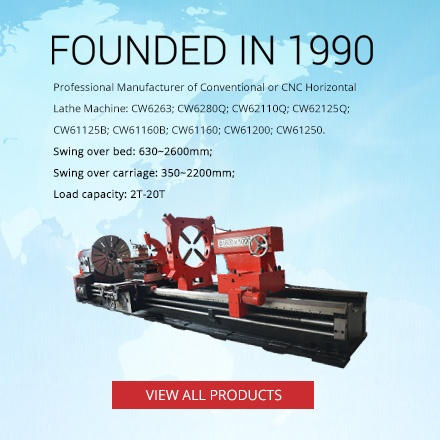

FOUNDED IN 1990
FOUNDED IN 1990
Professional Manufacturer Of Conventional Or CNC Horizontal Lathe Machine: CW6263; CW6280Q; CW62110Q; CW62125Q; CW61125B; CW61160B; CW61160; CW61200; CW61250.
Swing Over Bed: 630~2600mm;
Swing Over Carriage: 350~2200mm;
Load Capacity: 2T-20T
VIEW ALL PRODUCTS
CNC horizontal lathe
Hot Products

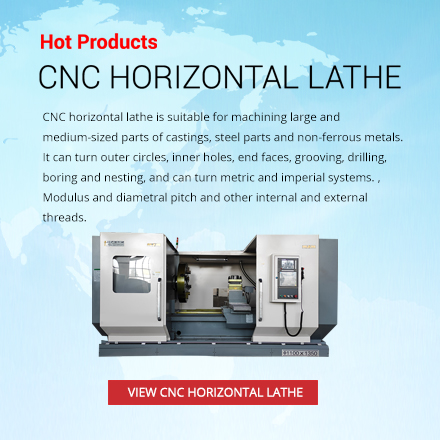

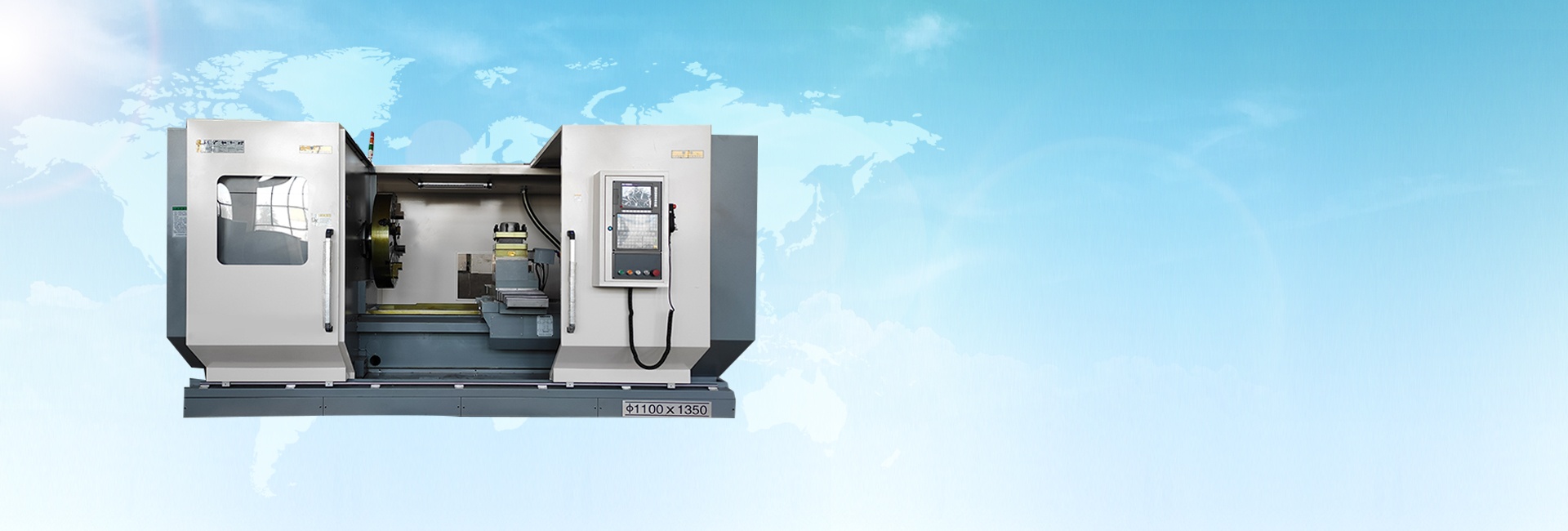

CNC HORIZONTAL LATHE
CNC horizontal lathe is suitable for machining large and medium-sized parts of castings, steel parts, and non-ferrous metals. It can turn outer circles, inner holes, end faces grooving, drilling, boring, and nesting, and can turn metric and imperial systems. , Modulus and diametral pitch, and other internal and external threads.
VIEW CNC HORIZONTAL LATHE
cw61200-Hebei Yawo Machinery Manufacturing Co., Ltd
CNC horizontal lathe-Hebei Yawo Machinery Manufacturing Co., Ltd
FOUNDED-IN-1990-Hebei-Yawo-Machinery-Manufacturing-Co-Ltd_1-640-640
YAWO HOT LATHE
Professional Manufacturer of Conventional or CNC Horizontal Lathe Machine: CW6263; CW6280Q; CW62110Q; CW62125Q; CW61125B; CW61160B; CW61160; CW61200; CW61250; Swing over bed: 630~2600mm; Swing over carriage: 350~2200mm; Load capacity: 2T~20T

CW6180B/CW6280B


       Swing over bed: 800mm;
       Swing over carriage: 480mm;
       Swing over gap: 1000mm(CW6280B);
       Processing length: Customized;
       Load capacity: 2.5 tons;
       Bed width: 600mm;
       Spindle bore: 105mm (130mm is optional);
       Main motor power: 11kw.

CW61110Q/CW62110Q


       Swing over bed: 1100mm;
       Swing over carriage: 800mm;
       Swing over gap: 1300mm(CW62110Q);
       Processing length: Customized;
       Load capacity: 2.5 tons;
       Bed width: 600mm;
       Spindle bore: 105mm (130mm is optional);
       Main motor power: 11kw.

CW61125Q/CW621250Q


       Swing over bed: 1250mm;
       Swing over carriage: 920mm;
       2Swing over gap: 1450mm(CW62125Q);
       Processing length: Customized;
       Load capacity: 2.5 tons;
       Bed width: 600mm;
       Spindle bore: 105mm (130mm is optional);
       Main motor power: 11kw.

CW61160B


       Swing over bed: 1600mm;
       Swing over carriage: 1200mm;
       Processing length: Customized;
       Load capacity: 6 tons;
       Bed width: 755mm;
       Spindle bore: 130mm;
       Main motor power: 22kw.

CW61125B


       Swing over bed: 1250mm;
       Swing over carriage: 860mm;
       Processing length: Customized;
       Load capacity: 6 tons;
       Bed width: 755mm;
       Spindle bore: 130mm;
       Main motor power: 22kw.

CW61160


       Swing over bed: 1600mm;
       Swing over carriage: 1200mm;
       Processing length: Customized;
       Load capacity: 16 tons;
       Bed width: 1100mm;
       Spindle bore: 130mm;
       Main motor power: 22kw.

CK61200


       Swing over bed: 2000mm;
       Swing over carriage: 1600mm;
       Processing length: Customized;
       Load capacity: 16 tons;
       Bed width: 1100mm;
       Spindle bore: 130mm;
       Main motor power: 22kw.


CK61125B

       Swing over bed: 1250mm;
       Swing over carriage: 860mm;
       Processing length: Customized;
       Load capacity: 6 tons;
       Bed width: 755mm;
       Spindle bore: 130mm;
       Main motor power: 22kw.
       CNC control system: GSK980TDi

CAK80135

       Swing over bed: 800mm;
       Swing over carriage: 480mm;
       Processing length: Customized;
       Load capacity: 2.5 tons;
       Bed width: 600mm;
       Spindle bore: 105mm;
       Main motor power: 15kw.
       CNC control system: GSK980TDi
2.5 Tons Load Capacity Lathe
6~8 Tons Load Capacity Lathe
16 Tons Load Capacity Lathe
ABOUT YAWO MACHINERY
Original Source | 30 Years Factory | Favourable Price | Stable Quality & Fast Delivery
Hebei Yawo Machinery Manufacturing Co., Ltd established in year of 1990, located in Mukou industrial park, Xingjiawan town, Renxian county, Hebei province, covers an area of more than 80 acres, has more than 300 employees and 50 technicians. Our company now possesses the complete range of important processing equipments including casting, machining, heat treatment etc. equipments. Besides, we have CNC gear grinding machine, gantry type CNC guide rail grinding machine, CNC horizontal boring machine and milling machine, CNC horizontal machining center, etc., which provides the maximum guarantee for producing high quality lathe machines.We are factory direct to produce the CW series conventional horizontal lathe machine, CAK series CNC horizontal lathe, meanwhile we can customize all kinds of special machine tools according to customer's special requirements.
