CAK110135
YAWO
Original Source/30 Years Factory
Favourable Price
Stable Quality & Fast Delivery
YAWO Company Main Produce: CNC Horizontal Lathe Machine CAK110135
CAK110135 CNC Horizontal Lathe Machine Description
1. The combination of flat bed creates a structure of extremely high accuracy and rigidity.
2. Our flat bed CNC lathe is equipped with turrets of either Chinese or western origin, with high
rigidity and accuracy, and fast indexing speed.
3. Spindle utilizes double-row cylindrical roller bearings for high accuracy and rigidity.
4. High accuracy ball screws greatly improve the machining accuracy of the part.
5. Manual chuck is standard, hydraulic chuck is optional.
CAK110135 CNC Horizontal Lathe Machine Parameter
Items | Unit | CAK61100x1000mmx2.5T |
Swing over bed | mm | Φ1100 |
Swing over carriage/cross slide | mm | Φ780 |
Max. Length of work piece between two centers | mm | 1500/2000 |
Max. Weight of work piece | ton | 2.5 |
Guide rail width | mm | 600 |
Spindle bore and nose head | mm | Φ105 |
Taper spindle hole front cone and top | mm | D11 |
Spindle speed and range | r/min | Electric 4 gears,stepless variable speed in gear |
Center high from the Bed | mm | 505 |
Center high from the Ground | mm | 1230 |
fast moving speed X/Z | M/min | 7.5/6 |
Carrier transfer time | s | 3.9 |
Carrier transfer repetitive positioning accuracy | mm | 0.08 |
X axis travel | mm | 500 |
Z axis travel | mm | 1000 |
Main motor power | kw | 15 |
Tailstock sleeve diameter | mm | 120 |
Tailstock sleeve travel | mm | 250 |
Taper hole of tailstock | MT | MT6# |
Precision | IT7 | |
Roundness of workpiece | 0.005 | |
Cylindricity of workpiece | 0.03/300 | |
Flatness of workpiece | 0.025/Φ300 | |
Processing surface roughness | Ra 1.6μm | |
Positioning accuracy X axis | 0.03 | |
Positioning accuracy Z axis | 0.05/850 | |
Relocation accuracy X axis | 0.009 | |
Relocation accuracy Z axis | 0.018/850 | |
CNC Control system | GSK/FANUC/SIEMENS | |
Machine size (LxWxH) about | mm | 3750x2150x1950(CAK110135) |
5250x2150x1950(CAK110285) | ||
Machine weight about | kg | 5800/6500 |
CNC control system | KG | GSK,FANUC,SIEMENS |

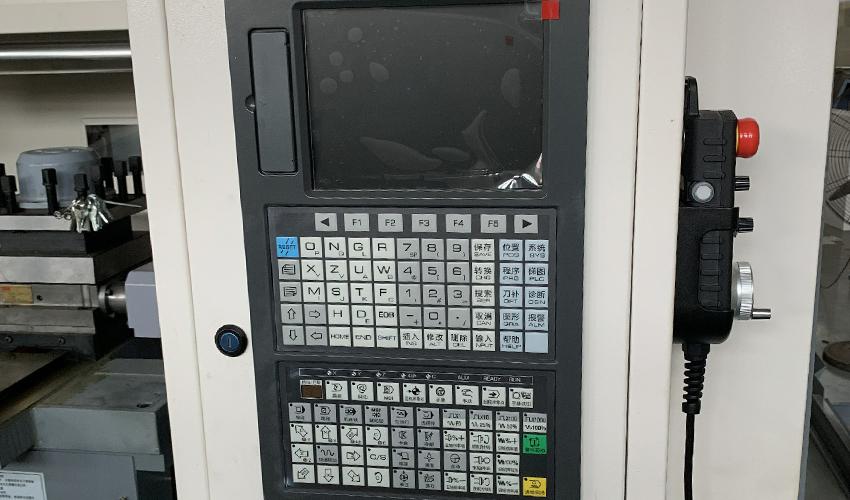

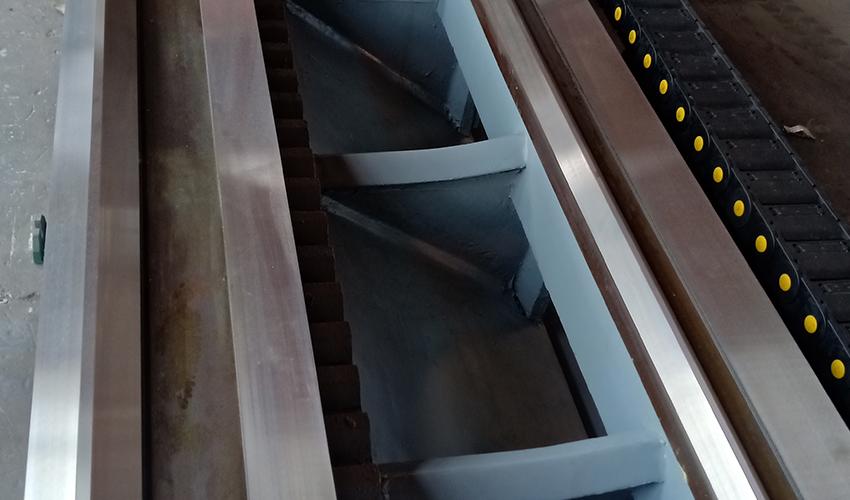

CAK110135 CNC Horizontal Lathe Machine Product display
CAK110135 CNC Horizontal Lathe Machine Product display
CAK110135 CNC Horizontal Lathe Machine display
CAK110135 CNC Horizontal Lathe Machine Product display
CAK110135 CNC Horizontal Lathe Machine Product display
Horizontal Lathe Machine Other Products
CNC Horizontal Lathe Machin-CAK80135 |
Customer Visit
Arabic Customer Visit | Egypt Customer Product Inspection |
Georgia Customer Visit | Georgia Customer Visit |
Indonesia Customer Product Inspection | Russia Customer Order Inspection |
Packing And Shipping

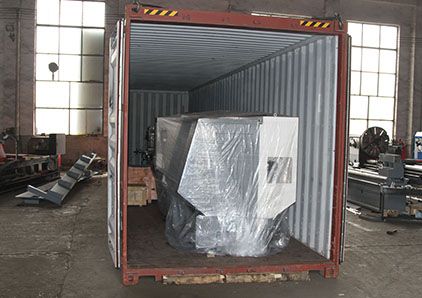

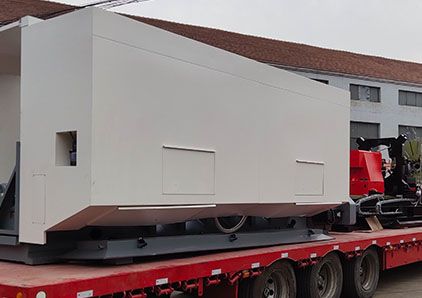

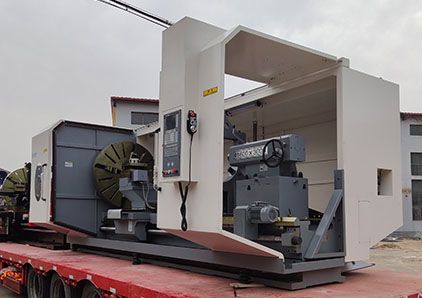

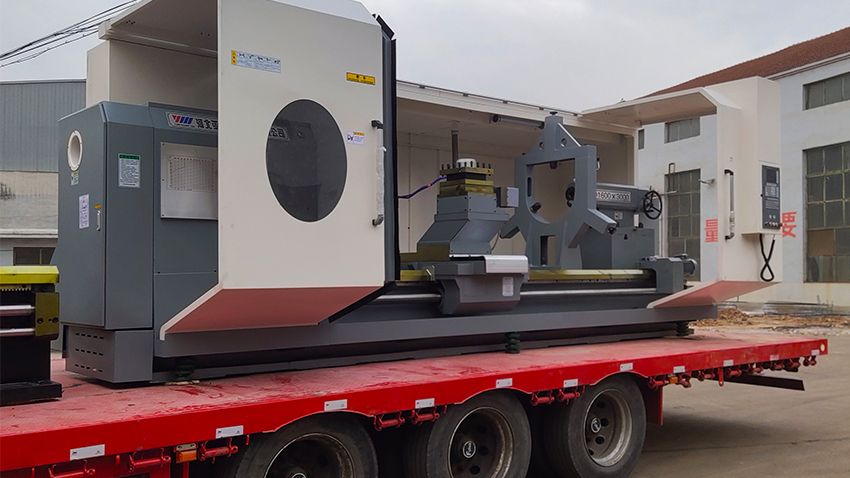

CNC Horizontal Lathe Machin loading
CNC Horizontal Lathe Machin loading | CNC Horizontal Lathe Machin loading |
CNC Horizontal Lathe Machin loading | CNC Horizontal Lathe Machin loading |
About The Factory
Hebei Yawo Machinery Manufacturing Co., Ltd established in year of 1990, located in Mukou industrial park, Xingjiawan town, Renxian county, Hebei province, covers an area of more than 80 acres, has more than 300 employees and 50 technicians. Our company now possesses the complete range of important processing equipments including casting, machining, heat treatment etc. equipments. Besides, we have CNC gear grinding machine, gantry type CNC guide rail grinding machine, CNC horizontal boring machine and milling machine, CNC horizontal machining center, etc., which provides the maximum guarantee for producing high quality lathe machines.We are factory direct to produce the CW series conventional horizontal lathe machine, CAK series CNC horizontal lathe, meanwhile we can customize all kinds of special machine tools according to customer's special requirements.
Factory Workshop | CNC Grinding Machine |
CNC Horizontal Machining Center | Horizontal Boring Machine |
Manual Lathe Workshop | CNC Lathe Workshop |
FAQ
1. Do you have any warranty?
Yes, we have. One year warranty on host machine is given. Six months free replacement warranty for spare parts.
2. How is your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
3. What certification do you have?
All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.
4. Will you teach how to use the machine?
Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily. It is easy to operate by anyone with the instructions.
5. How about thement ship?
The machine will be shipped within 2-3 days after the receipt of your payment.
6. Can visit your factory?
Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term.
