CAK50135
YAWO
Original Source/30 Years Factory
Favourable Price
Stable Quality & Fast Delivery
YAWO Company Main Produce: CNC Horizontal Lathe Machine CAK50135
CAK50135 CNC Horizontal Lathe Machine Description
1. The combination of flat bed creates a structure of extremely high accuracy and rigidity.
2. Our flat bed CNC lathe is equipped with turrets of either Chinese or western origin, with high
rigidity and accuracy, and fast indexing speed.
3. Spindle utilizes double-row cylindrical roller bearings for high accuracy and rigidity.
4. High accuracy ball screws greatly improve the machining accuracy of the part.
5. Manual chuck is standard, hydraulic chuck is optional.
CAK50135 CNC Horizontal Lathe Machine Parameter
Item | unit | CAK5085/CAK50135 | ||
Max. swing dia. over bed | mm | 500 | ||
Max. Swing diameter over cross slide | mm | 280 | ||
Bed way width | mm | 400 | ||
max. workpiece length | mm | 1000/1500 | ||
max. turning length (with vertical 4-station turret) | mm | 1050 | ||
spindle nose type and code | A8 | |||
spindle front bore-hole taper | 1:20 | |||
spindle inner dia. | mm | 70 | ||
variable frequency | spindle speed grade | n | auto 4 gearshift, stepless | |
spindle speed range | rpm | 22-220; 71-710; 215-2200 | ||
main motor power | kw | 7.5 | ||
center height | from bed | mm | 250 | |
from ground | mm | 1130 | ||
rapid feed rate (X/ Z axis) | m/min | 5月10日 | ||
turret indexing time (per station) | s | 3.9(vertical 4-station); 3.6(vertical 6-station); 1.5(horizontal 6-station) | ||
turret indexing repeatability accuracy | ″ | ±2 | ||
X-axis travel (standard) | mm | 250 | ||
Z-axis travel (standard) | mm | 850/1350 | ||
workpiece precision | IT6-IT7 | |||
workpiece accuracy | μm | Ra1.6 | ||
tailstock quill dia. / travel | mm | 100/250 | ||
Bore taper of tailstock | Morse 5# | |||
turret type | vertical 6-station | • | ||
size of tool shank | EX-circle | mm | 32X32 | |
Boring hole tool | mm | 32 | ||
steady rest | mm | 120-350•/ 3m, 5m | ||
follow rest | mm | 20-140•/ 3m, 5m | ||
electrical total capacity | KVA | 30 | ||
machine weight (net/gross weight) | kg | 2200(CAK5085) | ||
2700(CAK50135) | ||||
Size (LXWXH) | mm | 2540X1500X1690 (CAK8085) | ||
3040X1500X1690 (CAK80135) | ||||
Control System | GSK,FANUC,SIEMENS |

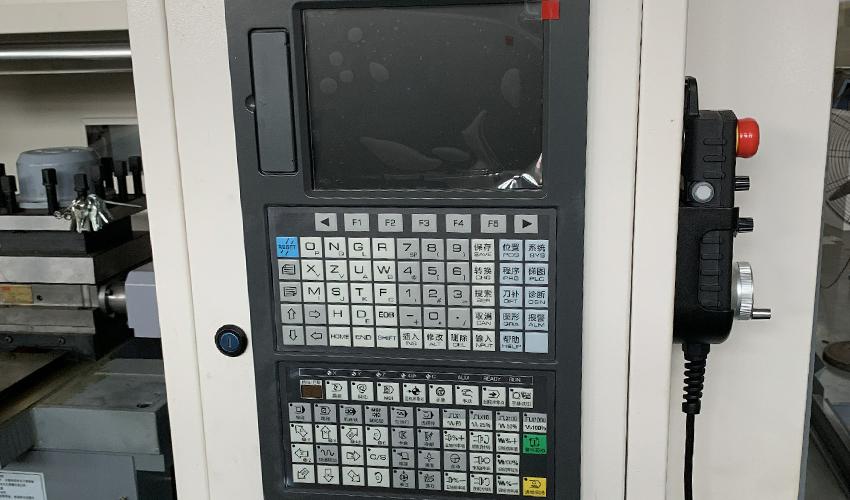

CAK50135 CNC Horizontal Lathe Machine Product display
CAK50135 CNC Horizontal Lathe Machine Product display
CAK50135 CNC Horizontal Lathe Machine display
CAK50135 CNC Horizontal Lathe Machine Product display
CAK50135 CNC Horizontal Lathe Machine Product display
Horizontal Lathe Machine Other Products
CNC Horizontal Lathe Machin-CAK80135 |
Customer Visit
Arabic Customer Visit | Egypt Customer Product Inspection |
Georgia Customer Visit | Georgia Customer Visit |
Indonesia Customer Product Inspection | Russia Customer Order Inspection |
Packing And Shipping

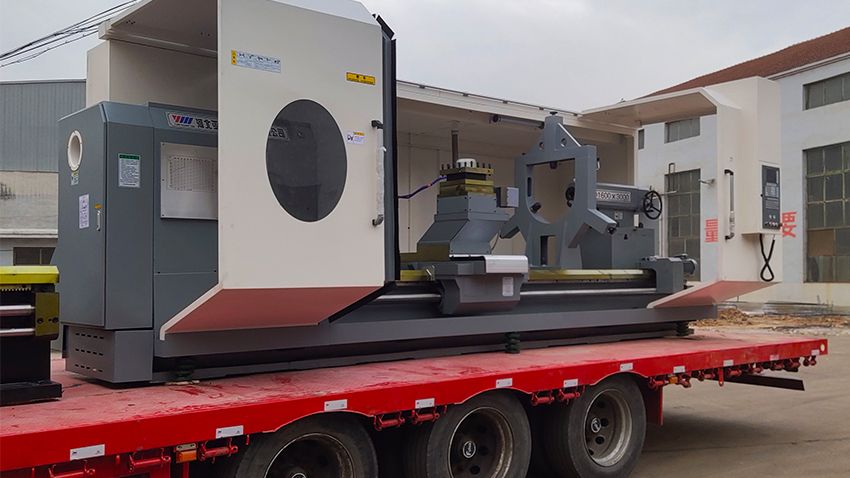

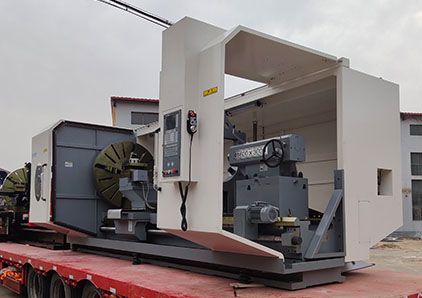

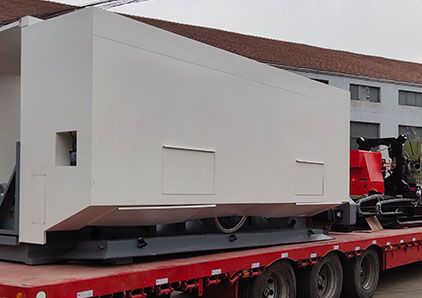

CNC Horizontal Lathe Machin loading
CNC Horizontal Lathe Machin loading | CNC Horizontal Lathe Machin loading |
CNC Horizontal Lathe Machin loading | CNC Horizontal Lathe Machin loading |
About The Factory
Hebei Yawo Machinery Manufacturing Co., Ltd established in year of 1990, located in Mukou industrial park, Xingjiawan town, Renxian county, Hebei province, covers an area of more than 80 acres, has more than 300 employees and 50 technicians. Our company now possesses the complete range of important processing equipments including casting, machining, heat treatment etc. equipments. Besides, we have CNC gear grinding machine, gantry type CNC guide rail grinding machine, CNC horizontal boring machine and milling machine, CNC horizontal machining center, etc., which provides the maximum guarantee for producing high quality lathe machines.We are factory direct to produce the CW series conventional horizontal lathe machine, CAK series CNC horizontal lathe, meanwhile we can customize all kinds of special machine tools according to customer's special requirements.
Factory Workshop | CNC Grinding Machine |
CNC Horizontal Machining Center | Horizontal Boring Machine |
Manual Lathe Workshop | CNC Lathe Workshop |
FAQ
1. Do you have any warranty?
Yes, we have. One year warranty on host machine is given. Six months free replacement warranty for spare parts.
2. How is your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
3. What certification do you have?
All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.
4. Will you teach how to use the machine?
Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily. It is easy to operate by anyone with the instructions.
5. How about thement ship?
The machine will be shipped within 2-3 days after the receipt of your payment.
6. Can visit your factory?
Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term.
