CNC Horizontal Lathe Machine CK61125B

Swing over bed:Φ1250mm
Swing over carriage/cross slide:Φ755mm
Guide rail width:755mm
Max. Weight of work piece:6t
Spindle bore and nose head:Φ130mm
Max. travel of lower slide:650mm
Max. travel of top slide:250mm
Availability:
Quantity:
  • CK61125B

  • YAWO

Original Source/30 Years Factory

Favourable Price

Stable Quality & Fast Delivery


YAWO Company Main Produce: CNC Horizontal Lathe Machine CK61125B


 CK61125BCNC Horizontal Lathe Machine Description


1. The combination of flat bed creates a structure of extremely high accuracy and rigidity.


2. Our flat bed CNC lathe is equipped with turrets of either Chinese or western origin, with high

rigidity and accuracy, and fast indexing speed.


3. Spindle utilizes double-row cylindrical roller bearings for high accuracy and rigidity.


4. High accuracy ball screws greatly improve the machining accuracy of the part.


5. Manual chuck is standard, hydraulic chuck is optional.




 CK61125B CNC Horizontal Lathe Machine Parameter


Items Unit CK61125x3000mmx3T
Swing over bed mm Φ1250
Swing over   carriage/cross slide mm Φ755
Max. Length of work   piece between two centers mm 3000
Max. Weight of work   piece ton 6
Guide rail width mm 755
Spindle bore and nose   head mm Φ130
Taper spindle hole front   cone and top mm D11
Spindle speed and range r/min 12kinds;3.15-315, stepless variable speed in gear
Number of feeds per   revolution (longitudinal/ transverse) mm 56 kinds;0.1-12/ 56kinds;0.05-6
Number and range of   metric thread mm 44;1-120
Number and range of inch thread 40,30-1/2T.P.I
Number and range of   module thread mm 46,M0.5-60M
Number and range of diametrical pitch thread 48 30-1/2
Max. travel of lower   slide mm 650
Max. travel of top slide mm 250
Tool rest fast moving   speed  Longitudinal Mm/min 7500
Tool rest fast moving   speed  Horizontal Mm/min 6000
Diameter of Tailstock   quill mm 160
Travel of tailstock   quill mm 300
Main motor power kw 22
Machine size (LxWxH)   about mm 6100x2150x2120
Machine weight about kg 11000(1350)
13000(2850)
15000(4850)
19000(7850)
CNC Control system GSK,FANUC,SIEMENS


 CK61125B CNC Horizontal Lathe Machine Product display

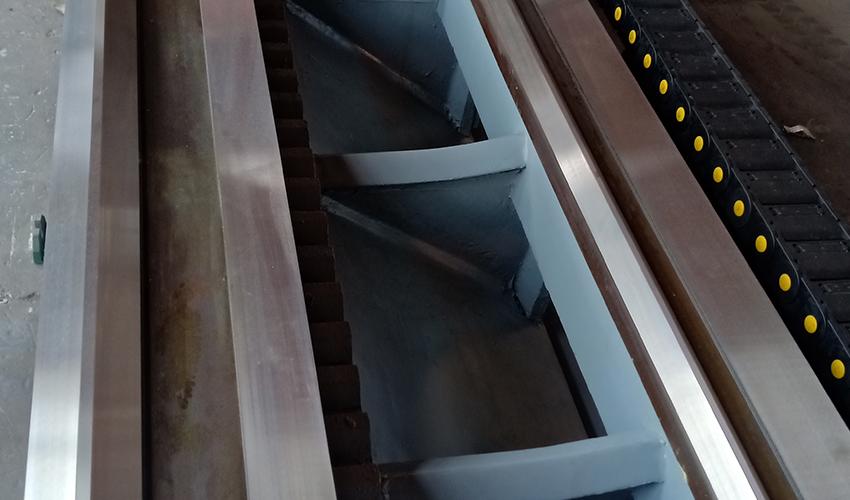

CK61125B CNC Horizontal Lathe Machine

CK61125B CNC Horizontal Lathe Machine Product display-Chuck

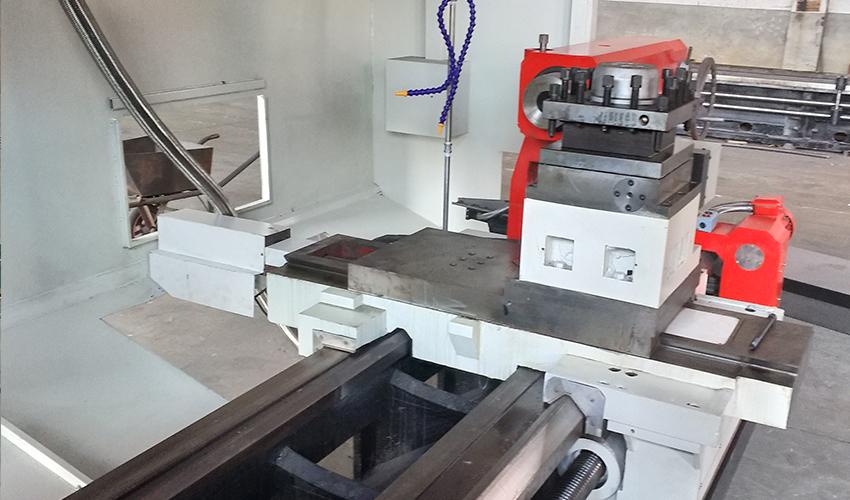

CK61125B CNC Horizontal Lathe Machine

CK61125B CNC Horizontal Lathe Machine display-Chuck

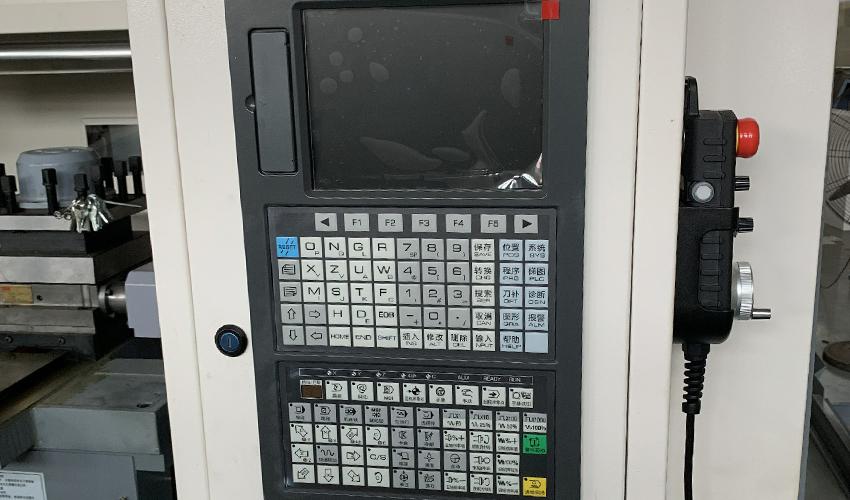

CK61125B CNC Horizontal Lathe Machine

CK61125B CNC Horizontal Lathe Machine Product display-Side

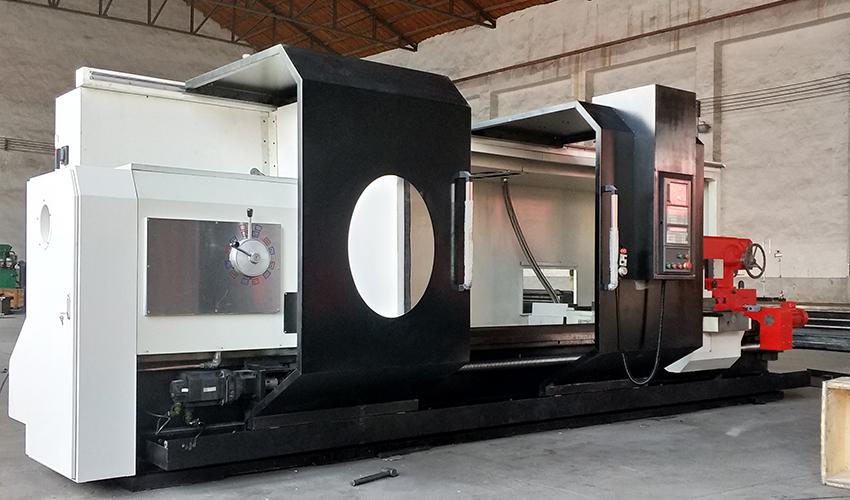

CK61125B CNC Horizontal Lathe Machine

CK61125B CNC Horizontal Lathe Machine Product display-Positive


 Horizontal Lathe Machine Other Products


YAWO-CW61125B

Horizontal Lathe Machine-CW61125B


YAWO-CW61160

Horizontal Lathe Machine-CW61160


YAWO-CW61160B

Horizontal Lathe Machine-CW61160B


YAWO-CW61200

Horizontal Lathe Machine-CW61200


CAK80135CNC Horizontal Lathe Machin-CAK80135
CK61125B_1

CNC Horizontal Lathe Machin-CK61125B


 Customer Visit


Arabic Customer Visit

Arabic Customer Visit


Egypt Customer Product Inspection

Egypt Customer Product Inspection


Georgia-Customer-Visit

Georgia Customer Visit


Georgia-Customer-Visit (1)

Georgia Customer Visit


Indonesia Customer Product Inspection

Indonesia Customer Product Inspection


Russia Customer Order Inspection

Russia Customer Order Inspection


 Packing And Shipping

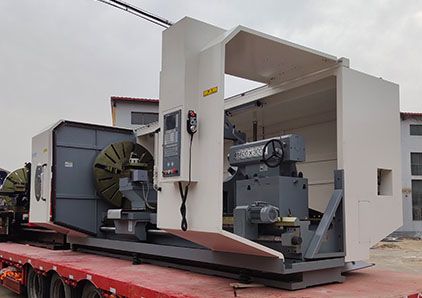

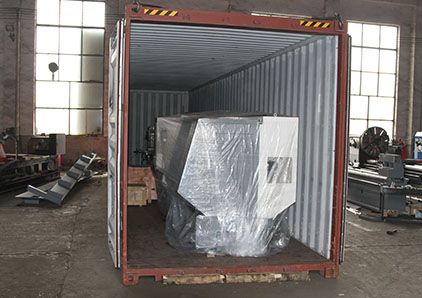

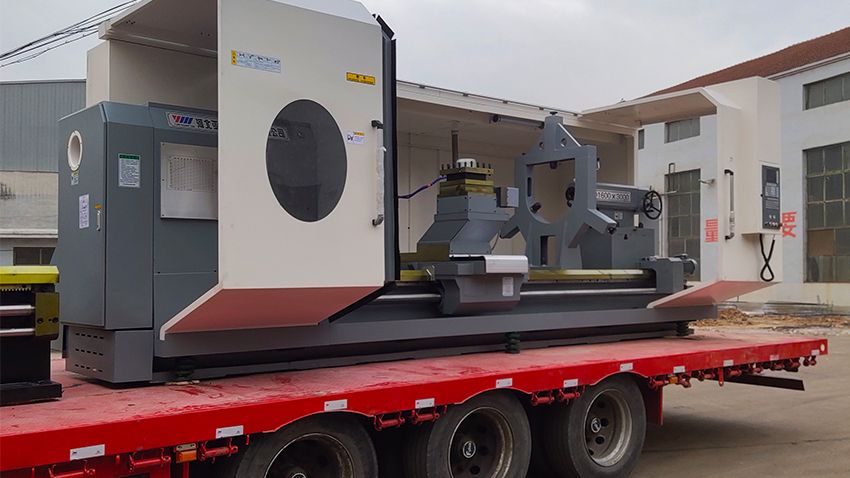

CNC Horizontal Lathe Machin loading
