CNC Horizontal Lathe Machine CK61160B

Swing over bed:Φ1600mm
Swing over carriage/cross slide:Φ1200mm
Guide rail width:755mm
Max. Weight of work piece:6t
Spindle bore and nose head:Φ130mm
Max. travel of lower slide:650mm
Max. travel of top slide:250mm
Availability:
Quantity:
  • CK61160B

  • YAWO

Original Source/30 Years Factory

Favourable Price

Stable Quality & Fast Delivery


YAWO Company Main Produce: CNC Horizontal Lathe Machine CK61160B


 CK61160B CNC Horizontal Lathe Machine Description


1. The combination of flat bed creates a structure of extremely high accuracy and rigidity.


2. Our flat bed CNC lathe is equipped with turrets of either Chinese or western origin, with high

rigidity and accuracy, and fast indexing speed.


3. Spindle utilizes double-row cylindrical roller bearings for high accuracy and rigidity.


4. High accuracy ball screws greatly improve the machining accuracy of the part.


5. Manual chuck is standard, hydraulic chuck is optional.



 CK61160B CNC Horizontal Lathe Machine Parameter



Items Unit CK61160Bx3000mmx6T
Swing over bed mm Φ1600
Swing over   carriage/cross slide mm Φ1200
Max. Length of work   piece between two centers mm 1500-20000
Max. Weight of work   piece ton 6
Guide rail width mm 755
Spindle bore and nose   head mm Φ130
Taper spindle hole front   cone and top mm Metric 140 , MT6
Spindle speed and range r/min 3.15-315;12kinds


mechanical change speed
Max. travel of lower   slide mm 650
Chuck diameter  1250
Max. travel of top slide mm 250
Tool rest fast moving   speed  Longitudinal Mm/min 3740
Tool rest fast moving   speed  Horizontal Mm/min 1870
Diameter of Tailstock   quill mm 160
Travel of tailstock   quill mm 300
Main motor power kw 22
Machine size (LxWxH)   about mm (3100+L)x2200x2200
Machine weight about kg 11000(1350)
13000(2850)
15000(4850)
19000(7850)
CNC Control system GSK,FANUC,SIEMENS

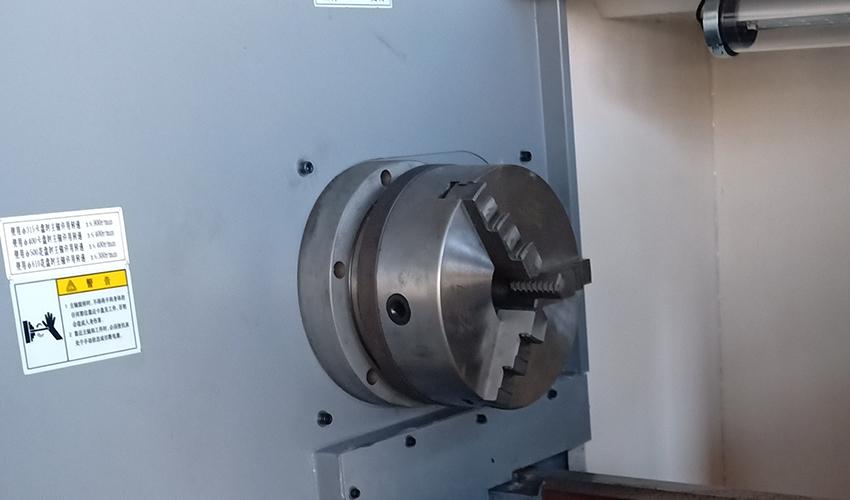

 CK61160B CNC Horizontal Lathe Machine Product display


CK61160B CNC Horizontal Lathe Machine Product display

CK61160B CNC Horizontal Lathe Machine Product display

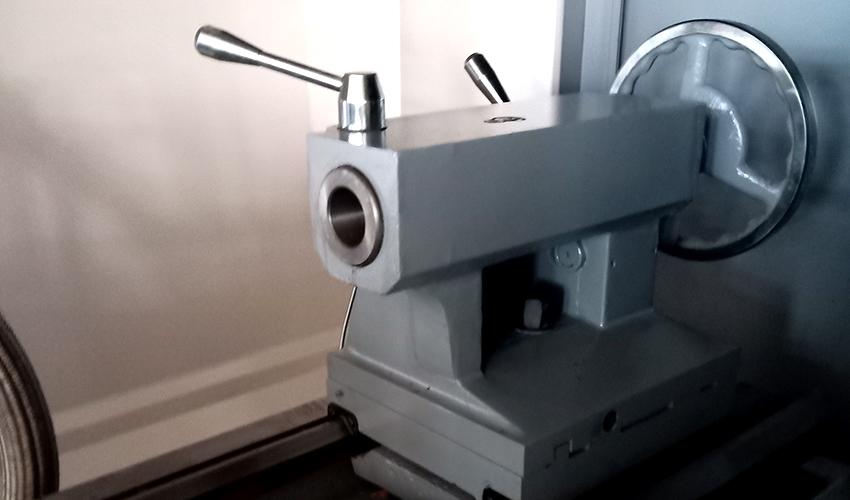

CK61160B CNC Horizontal Lathe Machine

CK61160B CNC Horizontal Lathe Machine display

CK61160B CNC Horizontal Lathe Machine

CK61160B CNC Horizontal Lathe Machine Product display

CK61160B CNC Horizontal Lathe Machine

CK61160B CNC Horizontal Lathe Machine Product display


 Horizontal Lathe Machine Other Products


YAWO-CW61125B

Horizontal Lathe Machine-CW61125B


YAWO-CW61160

Horizontal Lathe Machine-CW61160


YAWO-CW61160B

Horizontal Lathe Machine-CW61160B


YAWO-CW61200

Horizontal Lathe Machine-CW61200


CAK80135CNC Horizontal Lathe Machin-CAK80135
CK61125B_1

CNC Horizontal Lathe Machin-CK61125B


 Customer Visit


Arabic Customer Visit

Arabic Customer Visit


Egypt Customer Product Inspection

Egypt Customer Product Inspection


Georgia-Customer-Visit

Georgia Customer Visit


Georgia-Customer-Visit (1)

Georgia Customer Visit


Indonesia Customer Product Inspection

Indonesia Customer Product Inspection


Russia Customer Order Inspection

Russia Customer Order Inspection


 Packing And Shipping

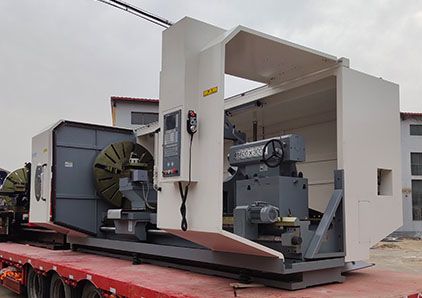

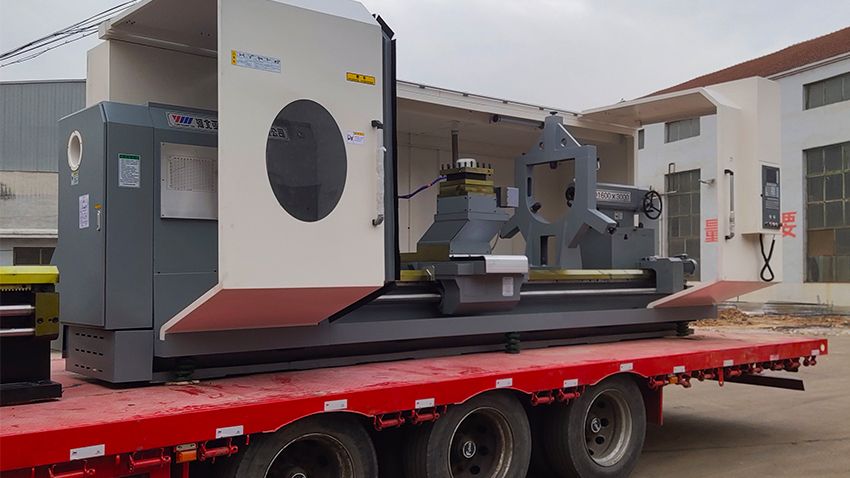

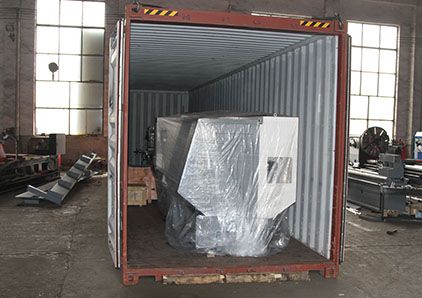

CNC Horizontal Lathe Machin loading

CNC Horizontal Lathe Machin loading

CNC Horizontal Lathe Machin loading

CNC Horizontal Lathe Machin loading


CNC Horizontal Lathe Machin loading

CNC Horizontal Lathe Machin loading

CNC Horizontal Lathe Machin loading

CNC Horizontal Lathe Machin loading


CNC Horizontal Lathe Machin loading

CNC Horizontal Lathe Machin loading


 About The Factory


Hebei Yawo Machinery Manufacturing Co., Ltd established in year of 1990, located in Mukou industrial park, Xingjiawan town, Renxian county, Hebei province, covers an area of more than 80 acres, has more than 300 employees and 50 technicians. Our company now possesses the complete range of important processing equipments including casting, machining, heat treatment etc. equipments. Besides, we have CNC gear grinding machine, gantry type CNC guide rail grinding machine, CNC horizontal boring machine and milling machine, CNC horizontal machining center, etc., which provides the maximum guarantee for producing high quality lathe machines.We are factory direct to produce the CW series conventional horizontal lathe machine, CAK series CNC horizontal lathe, meanwhile we can customize all kinds of special machine tools according to customer's special requirements.




Factory Workshop

Factory Workshop


CNC Grinding Machine

CNC Grinding Machine


CNC Horizontal Machining Center

CNC Horizontal Machining Center


Horizontal Boring Machine

Horizontal Boring Machine

Manual Lathe Workshop

Manual Lathe Workshop


CNC Lathe Workshop

CNC Lathe Workshop


 FAQ


1. Do you have any warranty?


 Yes, we have. One year warranty on host machine is given. Six months free replacement warranty for spare parts.


2. How is your after-sale service?


 We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.


3. What certification do you have?


 All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.


4. Will you teach how to use the machine?


 Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily.  It is easy to operate by anyone with the instructions.


5. How about thement ship?


 The machine will be shipped within 2-3 days after the receipt of your payment.


6. Can visit your factory?


 Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term.
