CW61250
YAWO
Original Source/30 Years Factory
Favourable Price
Stable Quality & Fast Delivery
YAWO Company Main Produce: Horizontal Lathe Machine CW61250
CW61250 Horizontal Lathe Machine Description
1. The machine tool power, strong rigidity, spindle speed range is wide, suitable for strong or high speed cutting.Of spindle brake and shift to the hydraulic control, sensitive and reliable braking available button without a stop conversion speed, the forced lubrication with pressure oil in the cabinet of the head of a bed, spindle speed range has several kinds, for user to choose from.
2. Sliding box has a fast moving structure, single handle visualization operation;Spindle and reversing shift to the brake and the user can choose the hydraulic control or manual control machinery.
3. The machine tool rest with single motor turning cylinder, you can also use the tool rest and longitudinal feed turning cone length.The machine it is suitable for large and medium-sized of steel and non-ferrous metal parts processing, can be cylindrical turning, inner hole, face cutting, drilling, boring and nesting.
4. The lathe bed by integrally cast lathe bed structure, internal steel board layout is reasonable, has high rigidity, machine adopts the 250 casting iron, equipment with high frequency quenching, guide rail mill grinding process, stable machine tools with high precision, high rigidity, strong cutting.
CW61250 Horizontal Lathe Machine Parameter
Model | Unit | CW61250 |
Max. swing diameter over bed | mm | 2500 |
Max. length of work piece | mm | 1500mm-20000mm |
Max. swing diameter over tool rest | mm | 2100 |
Max. Weight of work piece | ton | 16 |
Spindle hole diameter | mm | 130 |
Spindle hole taper | Metric 140 | |
Spindle forward turning kinds | 21 Kinds | |
Spindle reverse turning kind | 12 Kinds | |
n1 forward turning speed | r/min | 2-200 |
reverse turning speed | r/min | 2.24-178 |
Range of rest of each spindle turning | 56 Kinds | |
Longitudinal | mm | 0.1-12 |
cross | mm | 0.05-6 |
Up rest | mm | 0.025-3 |
metric threads range | mm | 44 Kinds 1-120 |
Inch threads range | 31 Kinds/24-1/4t.p.i | |
Modules threads range | mm | 45 Kinds/0.5-60 |
Diameter pitch threads | 38 Kinds /1/2-56DP | |
Max. travel of lower tool holder | mm | 1010 |
Max. travel of middle tool holder | mm | 300 |
Max. travel of top tool holder | mm | 200 |
Quick longitudinal move speed of tool rest | mm/min | 3740 |
Quick cross move speed of tool rest | mm/min | 1870 |
Follow rest | mm/min | 935 |
Dia. of tail stock sleeve | mm | 180 |
Max. travel of tail stock sleeve | mm | 300 |
Taper of Tail stock sleeve | Metric 80 | |
Main motor power | kw | 22 |
Outer Dimension Length | mm | 3200+L |
Width | mm | 2410 |
Height | mm | 2970 |
Bed width | mm | 1100 |
CW61250 Horizontal Lathe Machine Product display

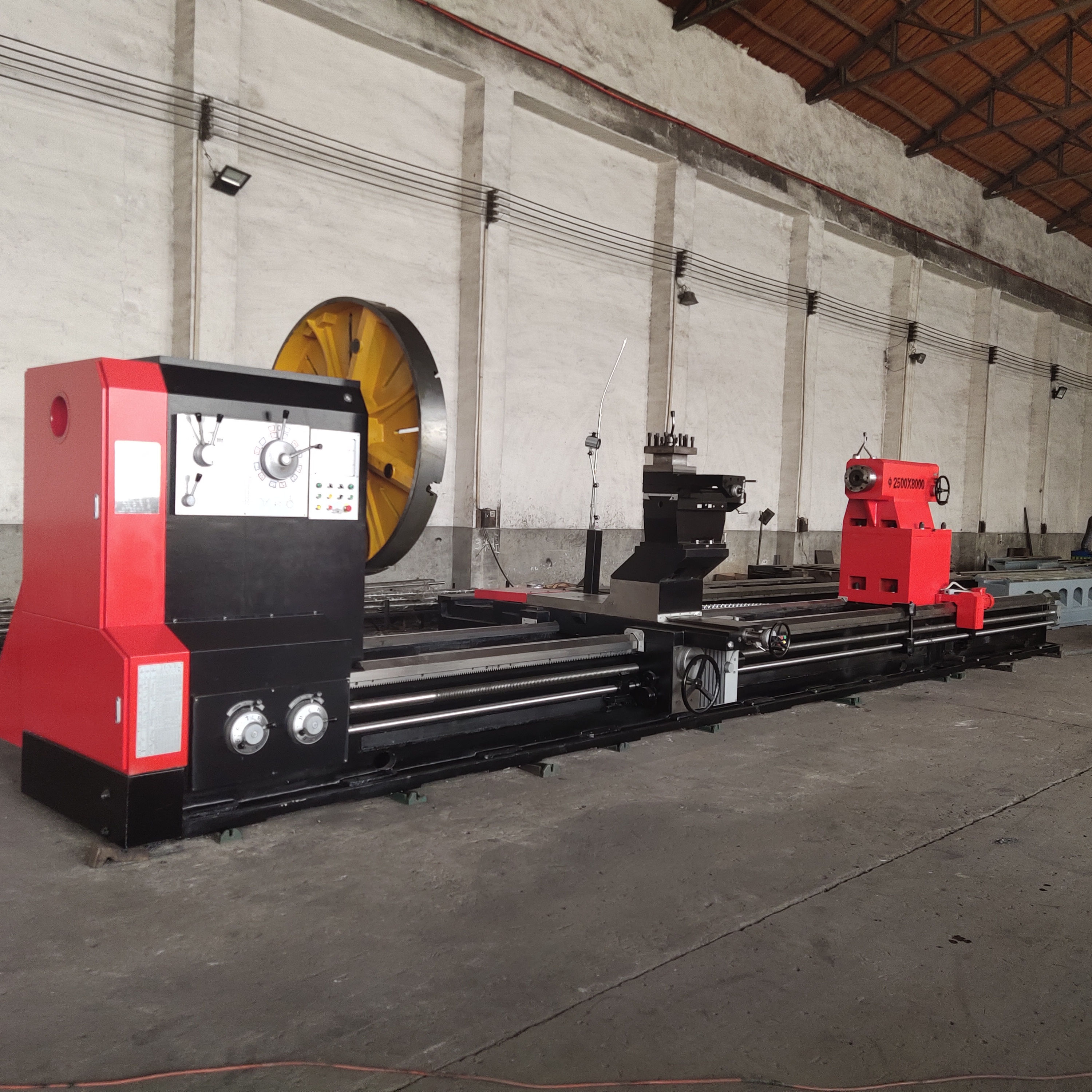

Horizontal Lathe Machine CW61250 Product display

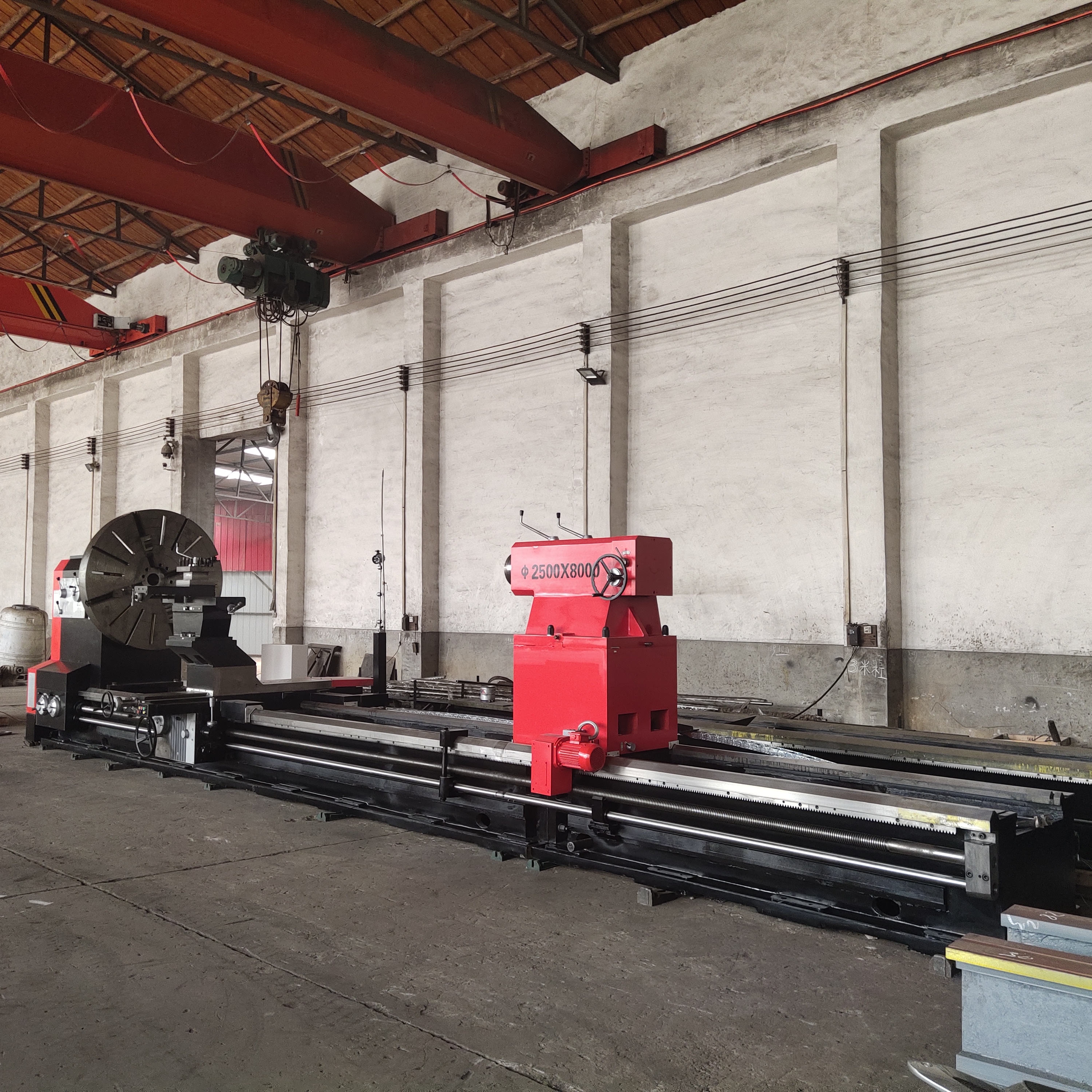

Horizontal Lathe Machine CW61250 Product display

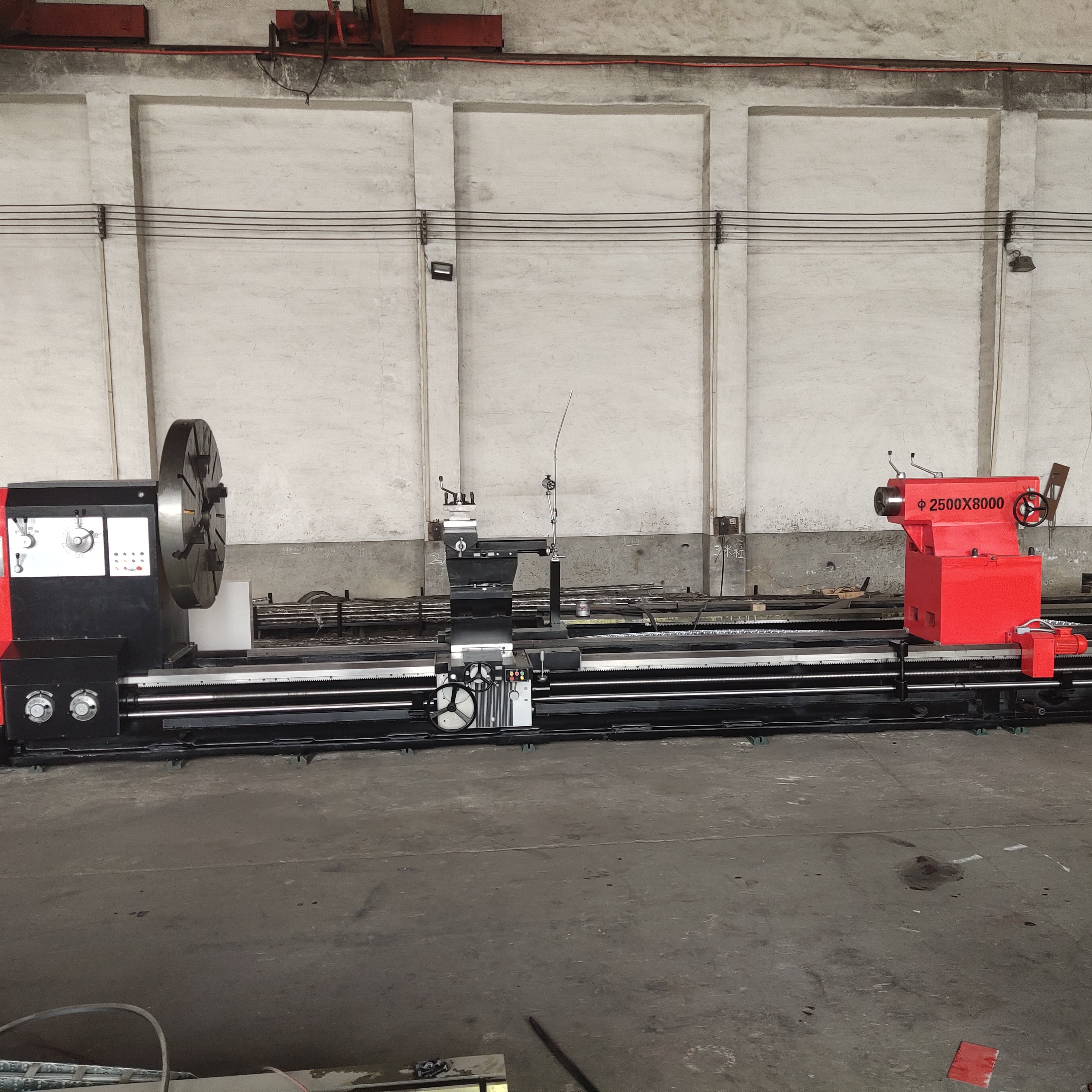

Horizontal Lathe Machine CW61250 Product display
Horizontal Lathe Machine Other Products
Customer Visit
Arabic Customer Visit | Egypt Customer Product Inspection |
Georgia Customer Visit | Georgia Customer Visit |
Indonesia Customer Product Inspection | Russia Customer Order Inspection |
Packing And Shipping
Horizontal Lathe Machine Loading
Horizontal Lathe Machine Loading | Horizontal Lathe Machine Loading |
Horizontal Lathe Machine Loading | CNC Horizontal Lathe Machin loading |
About The Factory
Hebei Yawo Machinery Manufacturing Co., Ltd established in year of 1990, located in Mukou industrial park, Xingjiawan town, Renxian county, Hebei province, covers an area of more than 80 acres, has more than 300 employees and 50 technicians. Our company now possesses the complete range of important processing equipments including casting, machining, heat treatment etc. equipments. Besides, we have CNC gear grinding machine, gantry type CNC guide rail grinding machine, CNC horizontal boring machine and milling machine, CNC horizontal machining center, etc., which provides the maximum guarantee for producing high quality lathe machines.We are factory direct to produce the CW series conventional horizontal lathe machine, CAK series CNC horizontal lathe, meanwhile we can customize all kinds of special machine tools according to customer's special requirements.
Factory Workshop | CNC Grinding Machine |
CNC Horizontal Machining Center | Horizontal Boring Machine |
Manual Lathe Workshop | CNC Lathe Workshop |
FAQ
1. Do you have any warranty?
Yes, we have. One year warranty on host machine is given. Six months free replacement warranty for spare parts.
2. How is your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
3. What certification do you have?
All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.
4. Will you teach how to use the machine?
Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily. It is easy to operate by anyone with the instructions.
5. How about thement ship?
The machine will be shipped within 2-3 days after the receipt of your payment.
6. Can visit your factory?
Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term.
